Copper C120, tseem hu ua Electrolytic Tough Pitch Copper (ETP Copper), yog ib qho ntawm feem ntau siv tooj liab alloys hauv kev lag luam. Nws paub txog nws cov khoom siv hluav taws xob zoo heev thiab 100% IACS, ua rau nws zoo tagnrho rau cov khoom siv hluav taws xob thiab hluav taws xob. Cov tooj liab yog tsim los ntawm cov txheej txheem electrolytic uas txhim kho nws cov purity, uas ua rau muaj kev ua tau zoo dua thiab muaj zog txhua yam.
Copper C120's superior conductivity thiab yooj yim ntawm fabrication ua rau nws zoo meej rau daim ntaub ntawv uas yuav tsum tau precision thiab kev ntseeg tau. CNC machined Copper C120 qhov chaw yog siv rau hauv cables, busbars, connectors, thiab lwm yam khoom uas hluav taws xob efficiency thiab durability yog ib qho tseem ceeb.
Tshuaj, Lub Cev, thiab Mechanical Properties ntawm Copper C120 (Electrolytic Tough Pitch Copper)
Chemical Composition (Tswj)
|
Element |
Qhov sib txawv (wt.%) |
Lub luag haujlwm tseem ceeb |
|---|---|---|
|
Copper (Cu) |
Ntau dua lossis sib npaug li 99.90% |
Muab siab hluav taws xob conductivity |
|
Cov pa oxygen (O) |
Tsawg dua lossis sib npaug li 0.02% |
Cov kab keeb, txhim kho conductivity |
|
Lwm Yam Khoom |
Tsawg dua lossis sib npaug li 0.10% |
Cov khoom seem uas muaj kev cuam tshuam tsawg heev rau cov khoom |
Lub cev muaj zog
|
Khoom |
Tus nqi (Tswj) |
Test Standard/Condition |
|---|---|---|
|
Qhov ntom |
8.92 g / cm³ |
ASTM B 311 Cov Lus Qhia Tshwj Xeeb |
|
Melting Point |
1,083 degree |
ASTM E29 |
|
Thermal conductivity |
398 W / m·K ntawm 20 degree |
ASTM E 1952 Cov Lus Qhia |
|
Hluav taws xob conductivity |
100% IACS ntawm 20 degree |
ASTM B193 |
|
Coefficient ntawm Expansion |
16.8 µm/m· degree |
ASTM E228 |
|
Tshwj xeeb kub muaj peev xwm |
380 J/kg · K |
ASTM E 1269 Cov Lus Qhia |
|
Elastic Modulus |
120 GPa |
ASTM E111 |
Mechanical Properties (Annealed Temper)
|
Khoom |
Tus nqi (Tswj) |
Test Standard |
|---|---|---|
|
Tensile zog |
210-290 MPa |
ASTM E8/E8M |
|
Lub zog muaj zog (0.2%) |
150-250 MPa |
ASTM E8/E8M |
|
Elongation |
25–40% |
ASTM E8/E8M |
|
Hardness |
40-60 HB |
ASTM E10 |
|
Kev qaug zog |
~ 150 MPa |
ASTM E 466 1 |
|
Impact Resistance |
Zoo |
ASTM E23 |
Cov yam ntxwv tseem ceeb ntawm tooj liab C120 (Electrolytic Tough Pitch Copper)
Hluav taws xob conductivity zoo heev
Copper C120 muab 100% IACS hluav taws xob conductivity, superior rau lwm cov tooj liab alloys xws li C101, ua rau nws zoo tagnrho rau cov khoom siv hluav taws xob.
High Ductility thiab Formability
Piv rau alloys xws li C110, tooj liab C120 muaj superior ductility thiab tuaj yeem tsim tau yooj yim rau hauv cov duab nyuaj yam tsis muaj kev cuam tshuam lub zog.
High Purity rau kev ntseeg tau zoo
Cov txheej txheem electrolytic ua kom muaj purity siab heev, txhim kho kev ua haujlwm ntawm cov khoom siv nrog qis purity, xws li C102.
Lub zog nruab nrab nrog siab Toughness
Copper C120 muaj lub zog tensile nruab nrab, ua rau nws tsim nyog rau daim ntawv thov uas yuav tsum tau yooj yim thiab toughness dua harder, tsawg ductile alloys.
Tus nqi - Zoo rau kev siv hluav taws xob
Copper C120 yog tus nqi ntau dua - siv tau ntau dua - lub zog tooj liab alloys, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev tsim hluav taws xob ntau.
Kev lag luam kev siv tooj liab C120 (Electrolytic Tough Pitch Copper)
Aerospace Kev Lag Luam:Siv nyob rau hauv siab -kev ua tau zoo connectors thiab cov khoom rau avionics thiab aerospace systems uas yuav tsum tau zoo heev hluav taws xob conductivity.
Hluav taws xob & Fais fab:Qhov zoo tshaj plaws rau kev tsim hluav taws xob thiab kev faib khoom, suav nrog cov tsheb thauj mus los, hluav taws xob cables, thiab cov khoom sib txuas.
Kev Lag Luam Kev Lag Luam:Haum rau kev tsim hluav taws xob connectors thiab switchgear siv nyob rau hauv cov khoom siv sib txuas lus.
Hais txog peb
Founded hauv 2008, peb lub tuam txhab tshwj xeeb hauv kev lag luam thoob ntiaj teb ntawm cov khoom zoo siab - tooj liab. Peb mob siab rau muab ntau yam ntawm tooj liab-raws li kev daws teeb meem rau cov neeg siv khoom thoob ntiaj teb.
Peb cov khoom lag luam tseem ceeb suav nrog ntau qhov sib txawv ntawm cov ntaub ntawv tooj liab thiab tooj liab, suav nrog:
Copper Tubes & Pipes: Precision -engineered rau cov ntawv thov hauv HVACR, kav dej, thiab kev lag luam.
Copper Sheets & Phaj: Muaj nyob rau hauv ntau qib thiab thicknesses rau vov tsev, fabrication, thiab architectural siv.

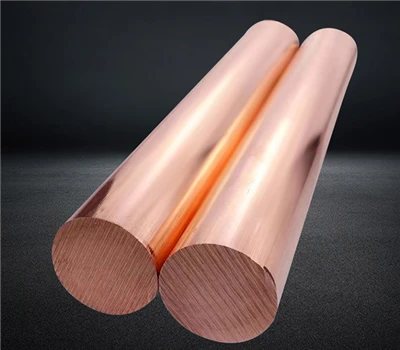

Copper Bars & Rods: Muab cov khoom siv, hexagons, lossis squares rau machining, cov khoom siv hluav taws xob, thiab kev tsim khoom.
