Tooj liab C10800 kav dejMuaj 99.99% Ntshiab Tooj Liab, muaj cov thermal thiab hluav taws xob conductivity. Cov yam ntxwv kho tshuab yog tensile lub zog ntawm ib ncig ntawm 210 mpa, muab lub zog ntawm 50 MPa, thiab elongation 30%, ua rau lawv mos thiab yooj yim rau kev ua haujlwm nrog. Lawv muaj lub hardness ntawm ib puag ncig 40 HB, uas yog qhov zoo rau kev tsim thiab corrosion tsis kam. C10800 tooj liab tau haum rau cov ntawv thov Purity, piv txwv li, kev hloov pauv hluav taws xob, thiab kev lag luam kom sov kom muaj kev ua tau zoo ib yam hauv cov xwm txheej nyuaj.
ASTM B111 Tsis Yog C10800 Tooj Liab Hose Specifications
| Lub hom phiaj | ASTM B111 / ASTM B75 / ASTM B25 / ASTM B280 / ASTM B68 / ASHM B68 / ASME SB111 / ASME SB75 / ASME SB280 / ASME SB68 |
|---|---|
| Khoom | Tooj liab |
| Sab Nraum Incha (OD) | 4mm-150mm |
| Phab Ntsa Thickness: | 0.25mm-8 hli |
| Qho ntev | 1 meter-6 'meter' lossis raws li yuav tsum tau ua |
| Hom | Seamless kav, yeeb nkab / lub teeb kos cov yeeb nkab / lub teeb annealed yeeb nkab / sab ci yeeb nkab / annealed yeeb nkab, tag nrho annealed yeeb nkab, nyuaj kos cov kav dej |
| Daim ntawv thov | 1. Pancake Coil rau ACR |
ASTM B111 UNSIVE C10800 COPPER Chev Yeeb Nkab Cov Tshuaj Muaj Tshuaj
| Teem nqi | CU | PH |
| C10800 | Suav nrog AG + P | 0.005 – 0.012 |
ASTM B111 Tsis Txaus C10800 Yooj Yim Cop Tubing Tubing Roog Cov Khoom Siv
| Ntom ntom (lb / cu. Hauv.) | Hluav taws xob resistivity (microhm - cm (ntawm 68 deg f)) | Melting taw tes (DEG F) | Lub ntsiab lus coeff thermal expansion | Modulus ntawm elasticity nro |
| 0.323 | 11.3 | 1981 | 9.4 | 17000 |
ASTM B111 UNSIVE C10800 Txheej Txe Ntsiav Ntsig Chev (LWC) Tooj Npav Thickness Daim Ntawv
| (hli) | Sab nraud ntawm lub taub (hli) |
Lub rooj y Ib nrab ntawm lub raj annealed |
Rooj X Ib nrab ntawm lub teeb ntawm lub raj |
Rooj Z Hard Drit Thias Phab Ntsa Tube |
|||
|---|---|---|---|---|---|---|---|
| Ntau tshaj plaws ua haujlwm siab (N / MM2) |
Qhov tuab (hli) |
Ntau tshaj plaws ua haujlwm siab (N / MM2) |
Qhov tuab (hli) |
Ntau tshaj plaws ua haujlwm siab (N / MM2) |
Qhov tuab (hli) |
||
| 8 | 8 | 10.5 | 0.8 | 9.7 | 0.6 | 9.8 | 0.5 |
| 6 | 6 | 14.4 | 0.8 | 13.3 | 0.6 | 11.3 | 0.5 |
| 10 | 10 | 8.2 | 0.8 | 7.7 | 0.6 | 7.8 | 0.5 |
| 15 | 15 | 6.7 | 1 | 5.8 | 0.7 | 5 | 0.5 |
| 12 | 12 | 6.7 | 0.8 | 6.3 | 0.6 | 6.4 | 0.5 |
| 18 | 18 | 5.5 | 1 | 5.6 | 0.8 | 5 | 0.6 |
| 28 | 28 | 4.2 | 1.2 | 4 | 0.9 | 3.2 | 0.6 |
| 22 | 22 | 5.7 | 1.2 | 5.1 | 0.9 | 4.1 | 0.6 |
| 35 | 35 | 4.1 | 1.5 | 4.2 | 1.2 | 3 | 0.7 |
| 54 | 54 | 3.6 | 2 | 2.7 | 1.2 | 2.5 | 0.9 |
| 159 | 159.4 | 1.5 | 2 | 1.5 | 1.5 | ||
| 42 | 42 | 3.4 | 1.5 | 3.5 | 1.2 | 2.8 | 0.8 |
| 67 | 67 | 2.8 | 2 | 2 | 1.2 | 2 | 1 |
| 108 | 108.1 | 2.2 | 2.5 | 1.7 | 1.5 | 1.7 | 1.2 |
| 76.1 | 76.2 | 2.5 | 2 | 2.4 | 1.5 | 1.9 | 1.2 |
| 133 | 133.4 | 1.4 | 1.5 | 1.6 | 1.5 | ||
Qhov loj ntawm qhov chaw ntawm Seamless Tooj C10800 Yeeb Nkab
| Sab nraud ntawm lub taub (3) [hauv (hli)] |
Ntxhuab qhov loj |
Sab hauv lub taub (id) [hauv (hli)] |
||
|---|---|---|---|---|
| Hom L | Hom k | Hom M | ||
| 1⁄2 (12.7) | 3⁄8 | 0.430 (10.922) | 0.402 (10.211) | 0.450 (11.430) |
| 3⁄8 (9.5) | 1⁄4 | 0.315 (8.001) | 0.305 (7.747) | |
| 2 5⁄8 (66.675) | 21⁄2 | 2.465 (62.611) | 2.435 (61.849) | 2.495 (63.373) |
| 5⁄8 (15.875) | 1⁄2 | 0.545 (13.843) | 0.528 (13.411) | 0.569 (14.453) |
| 7⁄8 (22.225) | 3⁄4 | 0.785 (19.939) | 0.745 (18.923) | 0.811 (20.599) |
| 3⁄4 (19.05) | 5⁄8 | 0.668 (16.967) | 0.652 (16.561) | 0.690 (17.526) |
| 1 1⁄8 (28.575) | 1 | 1.025 (26.035) | 0.995 (25.273) | 1.055 (26.797) |
| 1 5⁄8 (41.275) | 11⁄2 | 1.505 (38.227) | 1.481 (37.617) | 1.527 (38.786) |
| 1 3⁄8 (34.925) | 11⁄4 | 1.265 (32.131) | 1.245 (31.623) | 1.291 (32.791) |
| 2 1⁄8 (53.975) | 2 | 1.985 (50.419) | 1.959 (49.759) | 2.009 (51.029) |
| 3 1⁄8 (79.375) | 3 | 2.945 (74.803) | 2.907 (73.838) | 2.981 (75.717) |

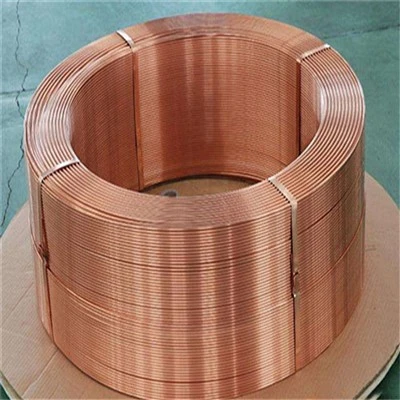

Siv ntawm Astm B111 Tsis yog C10800 Me Pancake Annealed Coils
Tooj liab C10800 kav yog qhov ua haujlwm ntau ntxiv hauv hluav taws xob siab thiab thermal conductivity xav tau kev lag luam. Lawv zoo tshaj plaws rau cov pob npav uas zoo tshaj plaws rau cov pob npav, tus coj, thiab hluav taws xob uas muaj nqi rau lawv cov kev coj dawb huv thiab kev coj ua. Nyob rau hauv hvac thiab tub yees khoom siv, lawv pab txhawb kev hloov pauv kub. Lawv kuj tseem siv hauv kev lag luam cov txheej txheem kub hloov, cov hws, thiab boilers. Luborrosion zoo dua kuj tseem ua rau lawv tsim nyog rau kev siv hauv marine, tshuaj lom neeg thiab kav dej. Sib nrug ntawm qhov no, cov kav dej C10800 tseem siv nyob rau hauv Aerospace, tsheb, thiab kev lag luam khoom siv kho mob uas qhov siab ntawm cov ntaub ntawv uas tsim nyog. Lawv yog kev xaiv xaiv nyob hauv ntau qhov kev lag luam vim lawv txoj kev ntseeg tau thiab kav ntev.
Tooj liab cov khoom lag luam uas gnee tuaj yeem muab
|
Khoom npe
|
Tooj liab yeeb / raj
|
|
Hloov tooj liab yeeb nkab
|
Phab Ntsa Thickness: 0.2-120mm
|
|
Sab nraud ntawm lub cheeb: 2mm ~ 910mm
|
|
|
Rectangular Tooj Liab Yeeb Nkab
|
Phab Ntsa Thickness: 0.2mm ~ 910mm
|
|
Qhov loj me: 2 hli * 4mm ~ 1016mm * 1219mm
|
|
|
Kev nyuaj
|
1/16 nyuaj, 1/8 tawv, 1/4 nyuaj, 1 / 2Hard, tag nrho nyuaj, mos, thiab lwm yam
|
|
Lub hom phiaj
|
GB / T5231 {- 2001.g {}}}}}}}}} - b152m-06-06, ASTM-B187, ASTM-B75M-02, ASTM-B42-02, ASTM-B370 / ASTM-B152 thiab lwm yam
|
|
Khoom
|
T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,
C10910, C10920, TP1, TP1, TP2, C10930, C11000, C11300, C11400, C11500,
C11600, C12000, C12200, C12200, Tu1, Tu1, C12500, C1400, C1420,
C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,
C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,
C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,
C70620, C71000, C71500, C71520, C71520, C71640, C72200, thiab lwm yam.
|
|
Kev siv
|
Cov hlab ntsha siab, kev hloov pauv kub, Cotter, pins, rivets, radiators, gaskets, vov tsev, plab hlaub
|
|
Lub thawv
|
Txheem export pob, nplua rau txhua yam kev thauj khoom, lossis raws li yuav tsum tau ua.
|
|
Khoom |
Tooj liab, tooj dag, tooj dag thiab tshwj xeeb tooj liab alloy |
|
|
Teem nqi |
ASTM |
C10100,C11000,C12200,C21000,C22000,C23000,C24000,C26000, |
|
G/B |
TU1, TP2, H96, H90, HEF0, H80, HECT0, HECTT, H65, H62, H62, HPB63-3, |
|
|
JIS |
C 1011,C 1100,C 1220,C3604,C 2100,C 2200,C 2300,C 2400, C 2600, |
|
|
Bs |
Cu -} uee, c 101, cz 103, CN 106, CN 107, CN 109, CZ 123, CZ 124, CZ 121, CZ 121, CN 111, CN 133, PB 104, |
|
|
Din / Iso |
Cuzn5, cuzn10, cuzn15, cuzn20, cuzn20, cuzn30, cuzn35, cuzn33, cuzn36, |
|
|
Lub cev |
Puag ncig, square, tiaj, hexagon, oval, ib nrab - round lossis customized round lossis customized |
|
|
Qho loj dav |
Laib / Qws |
Txheem (lub cheeb 5-160 mm) lossis customized |
|
Txoj xov tooj |
Txheem (txoj kab uas hla 502-6 mm) lossis customized |
|
|
Phaj / Ntawv |
Txheem (t 0.2-50 mm / w 200-3000 mm / l 6000 mm) lossis customized |
|
|
Txoj cai |
Txheem (t 0.05-1.5 mm / w 20-600 hli / l 20000 hli) lossis customized |
|
|
RAJ / YEEB |
Txheem (Tshooj 3-360mm / Phab Ntsa Thickness 0.5-50 mm) lossis Mekas |
|
|
Lub hom phiaj |
GB / T, JIS, ASTM, ISO, DIN, BS, NF ETC. |
|
|
Kev nyuaj |
1/16 nyuaj, 1/8 nyuaj, 1/4 nyuaj, 1 / 2Hard, tag nrho nyuaj. |
|
|
Lub thawv |
Cov yeeb yaj kiab yas + ntoo rooj plaub lossis raws li cov neeg siv khoom xav tau |
|
|
Nplaim |
Polished, ci, roj, plaub hau kab, txhuam, txhuam, daim iav, lossis raws li yuav tsum tau ua |
|
|
Xa lub sijhawm |
Raws li kev txiav txim kom muaj nuj nqis. |
|
|
Kev xa khoom |
Los ntawm hiav txwv, los ntawm huab cua, DHL, UPS, FedEx thiab lwm yam lossis raws li yuav tsum tau ua |
|
|
Daim ntawv thov |
Kev lag luam hluav taws xob kev lag luam, machinery manufacturing, tsim kev lag luam, kev tiv thaiv kev lag luam, thiab lwm daim teb tsim khoom lag luam |
|
|
Khoom npe |
Tooj liab phaj |
|||
|
Qhov dav |
500-2000mmm lossis raws li cov neeg siv khoom thov |
|||
|
Qhov tuab |
0.2-120mm lossis raws li cov neeg siv khoom thov |
|||
|
Qho ntev |
1000-6000mm lossis raws li cov neeg siv khoom thov |
|||
|
Kev pab cuam |
Vuam, stamping, txiav, dabtsi yog khoov, unwinding |
|||
|
Daim ntawv thov |
Dav siv nyob rau hauv kev lag luam hluav taws xob, khoom siv kho mob, kev tsim kho, tshuaj lom neeg, |
|||
|
Kev Tshaj Tawm |
Txheem cov tubrog nkoj ntim lossis ntim khoom lag luam |
|||
|
Cov ntsiab lus |
FOB CI CF CFR, lossis peb kuj tuaj yeem nkag mus rau hauv kev nthuav dav |
|||
|
Khoom npe |
Tooj liab hlau |
|
Lub hom phiaj |
AISI, ASTM, BS, Din, En, GB, JIS |
|
Qhov dav |
0.6mm / 0.8mm / 0.9mm / 1.0mm / 1.2mm / 1.6mm |
|
Thainckness |
0.12mm-3.0mm |
|
CU cov ntsiab lus (%) |
99.998% |
|
Alu - zinc txheej |
30-180g/m2 |
|
Khoom |
C21000, C22000, C22600, C22000, C24000, C26000, C26000, C26130, C26130, C27200, C27400, thiab lwm yam. |
|
Lub thawv |
Txheem seaworthy export pob: 3 Txheej ntawm cov ntim, sab hauv yog kraft ntawv, cov zaj duab xis dej yas nyob hauv nruab nrab thiab sab nraud GI steel ntawv yuav tsum duav los ntawm steel ib daim nrog xauv nrog xauv, nrog sab hauv lub tes tsho |
|
Daim ntawv muaj cai |
ISO, SGS, CE |
|
Kev xa mus |
8-20 hnub |
|
Cov ntsiab lus them nqi |
T / T, LC, Western Union, Paypal, thiab lwm yam. |
|
Moq |
1 TUJ |
Tooj liab cnc machined qhov chaw
|
Tab tom ua |
CNC Xa, CNC Milling, Laser Txiav, Dabtsi Yog Khoov, Hlau Txiav, Hluav Taws Xob Hluav Taws Xob, Hluav Taws Xob 3D, Pwm, Pwm Thiab Lwm Yam. |
|
Ntaub ntawv |
Aluminium: 2000 Series, 6000 Series, 7075,5052, thiab lwm yam. |
|
Stainlesss Hlau: Sus303, Sus304, SS316, SS316, 17-4-4-4-etc. |
|
|
Hlau: 1214L / 1215/1045/4140 / scm440 / 40crmo, thiab lwm yam. |
|
|
Tooj dag: 260, C360, H59, H59, H62, H62, H63, H65, H68, H70, tooj liab, tooj |
|
|
Titanium: Qib F1-F5 |
|
|
YAS: Acetal / POM / PA / BLON / PMMA / PMACA / PM / PM / PIB / ACREYI / ABS / PEEK thiab lwm yam. |
|
|
|
Anodized, hlaws tawg, cov duab hau lo lo ntxhuav, zinc / nicki / chrome / titanium plating, |
|
Kev nyiaj tau |
+ / - 0 . 0 1 m m |
|
Nplaim |
Min ra 0.1 ~ 3.2 |
|
Daim ntawv muaj cai |
ISO9001: 2015, iOS 2004001: 2015, Rosh. |
Vim li cas thiaj xaiv peb?
Txij li thaum peb tsim lub xyoo 2008, peb lub tuam txhab tau tshwj xeeb hauv kev tsim khoom thiab xa khoom ntawm cov khoom lag luam tooj liab. Peb siv cov txheej txheem siab ntau lawm thiab cov txheej txheem tswj kom zoo. Los ntawm cov khoom siv raw rau cov khoom tiav, txhua kauj ruam yog siv cov cuab yeej siv ua ntej (xws li cov khoom siv dav dav, thiab cov khoom lag luam thoob ntiaj teb rau kev sib xyaw, qhov ntev, thiab kev ua tau zoo. Peb tau cog lus los muab kev ntsuas siab siab {4 4}} zoo, siab} precision} preciable qhov kev pabcuam tooj liab thiab cov kev pabcuam kom ntseeg tau rau peb cov neeg siv khoom ntiaj teb.
